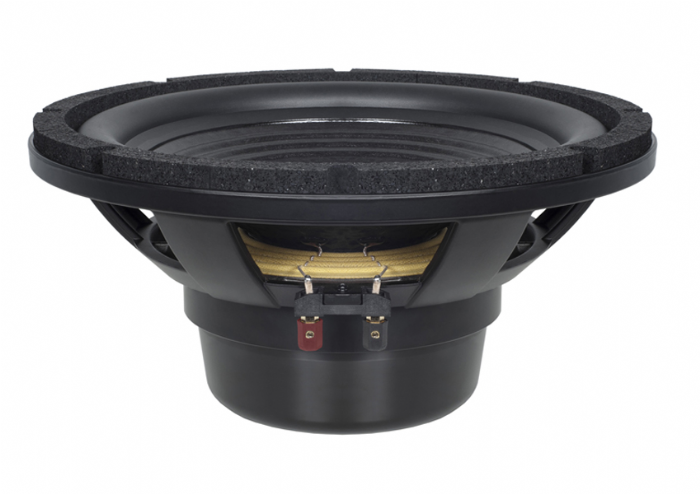

The B&C Speakers 12BG100 12" subwoofer features a high strength/lightweight neodymium motor and is recommended for direct radiator or horn loaded applications. It will also deliver outstanding results when deployed as the woofer in high-output 2-way speaker systems. Good power handling and Xmax capabilities thanks to a well-ventilated neodymium motor, 4" diameter 1" long voice coil, and carefully optimized suspension.

• Nominal Diameter12"
• Power Handling (RMS)1,000 Watts
•
• Power Handling (max)2,000 Watts

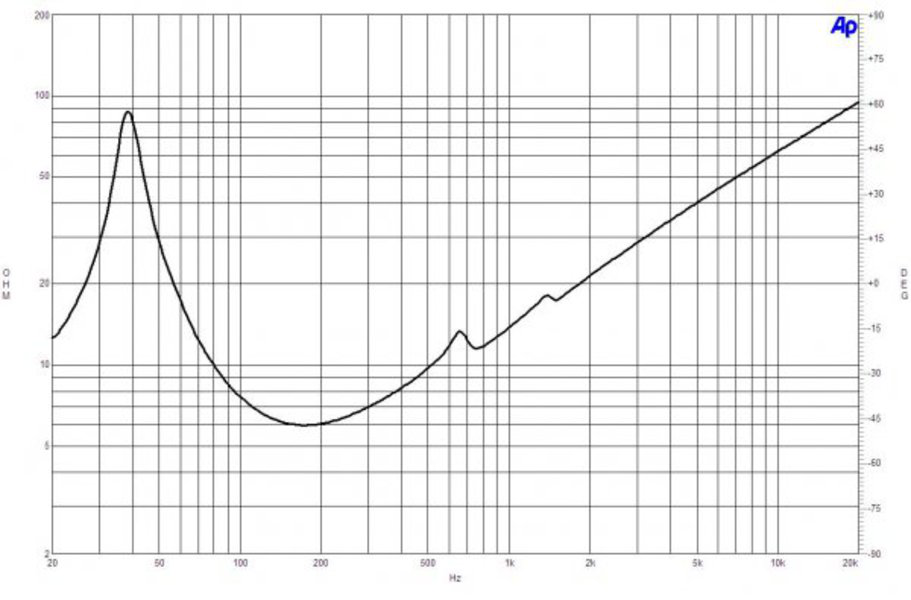

• Impedance8 ohms
•

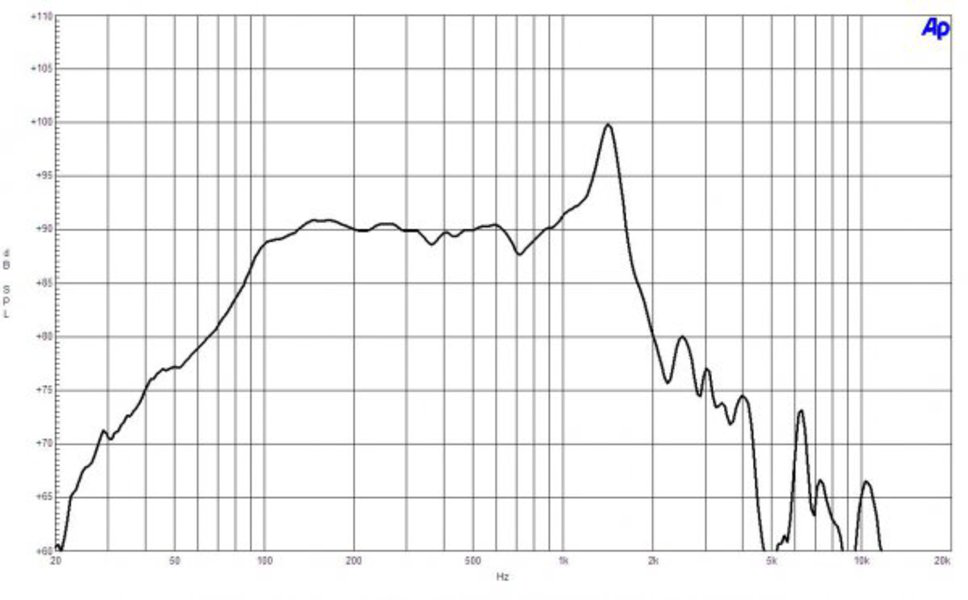

• Frequency Response40 to 1,000 Hz
• Sensitivity93 dB 1W/1m
•
• Voice Coil Diameter4"

• Resonant Frequency (Fs)39 Hz
• DC Resistance (Re)5.1 ohms
•
• Voice Coil Inductance (Le)1.6 mH
• Mechanical Q (Qms)6.8
•
• Electromagnetic Q (Qes)0.35
• Total Q (Qts)0.33
•
• Compliance Equivalent Volume (Vas)1.45 ft.³
• BL Product (BL)23 Tm
•
• Diaphragm Mass Inc. Airload (Mms)152g
• Maximum Linear Excursion (Xmax)10.5 mm
•
• Surface Area of Cone (Sd)522 cm²

• Cone MaterialPaper
• Surround MaterialRubber
•
• Voice Coil Wire MaterialCopper
• Voice Coil FormerKapton® / Polyimide
•
• Magnet MaterialNeodymium

• Overall Outside Diameter12.5"
• Baffle Cutout Diameter11.1"
•
• Depth5.4"
• # Mounting Holes8
•

• Sealed Volume0.29 ft.³
• Sealed F393 Hz
•

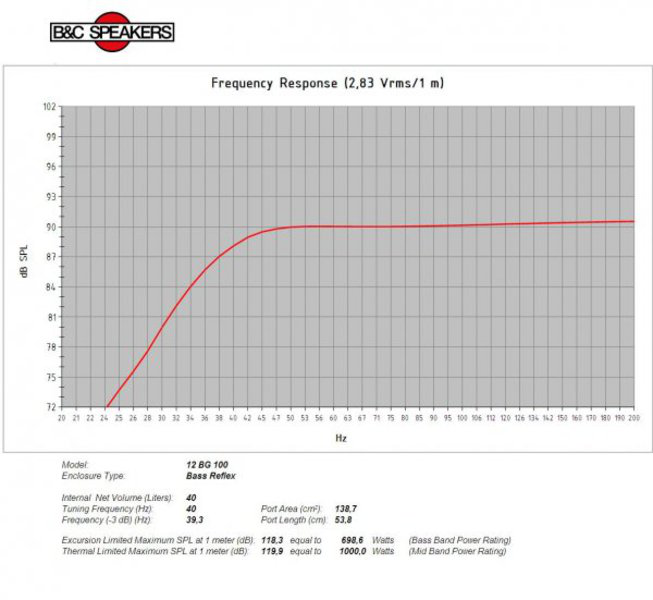

• Vented Volume0.62 ft.³
• Vented F356 Hz
•

• BrandB&C Speakers
• Model12BG100
•
• Weight21.3 lbs.
