מקלט כפול 72 תדרים Mipro ACT-100A
מקלט כפול 72 תדרים מקצועי מבית Mipro
ללא משדרים
EIA standard 1U rack-mountable metal receiver equipped with clear LED control panel. Receiver provides bias for booster where MIPRO antenna systems can be added for extended receiving range and stability.
Sensitivity adjustor to manage the sensitivity levels and interferences.
Industry’s only RF interference warning indicator with adjustor.
Enhanced RF filter and circuitry for improved anti-interference characteristics and increased compatible systems.
10 groups and a total of 102 selectable frequencies per band. One-touch Autoscan for a clear, interference-free frequency. World’s first ACT™ function provides precise and rapid frequency sync to the transmitters.
Advanced diversity receiving circuit for the best elimination of signal dropout. “PiloTone & NoiseLock” dual-squelch circuits prevent noise interference.
Three switchable output levels. Output level is accurately pre-adjusted to equal to the microphone capsule sensitivity and ensures optimal performance and no distortion during loud singing performance.
A balanced volume control enables users to adjust the mixed output volume of two wireless microphones.
Increased interference-free channels and ideal for large, multiple KTV rooms.
נתונים:
|
Channel
|
Dual
|
|
Chassis
|
EIA-Standard 19" 1U
|
|
Receiving Mode
|
Diversity
|
|
Frequency Range
|
UHF 480~934MHz
|
|
Antenna
|
Rear Panel. Detachable.
|
|
Preset Channels
|
102 preset channels. Group 1~6: 8 compatible channels in each group.
Group 7~8: 12 compatible channels in each group.
Group 9~10: 15 compatible channels in each group.
|
|
Oscillation Mode
|
PLL Synthesized, Frequency Stability?±0.005% (-10~+60℃)
|
|
Sensitivity
|
10dBµV, at S/N>80dB
|
|
S/N Ratio
|
>106dB(A)
|
|
T.H.D.
|
<0.5% @ 1kHz
|
|
Frequency Response
|
50Hz~18kHz
|
|
Squelch
|
"PiloTone & NoiseLock" dual-squelch circuit.
|
|
Audio Output Adjustment
|
Output level accurately pre-adjusted to equal to the microphone capsule sensitivity.
|
|
Maximum Output Level
|
3-Level Switch: +10dB / 0dB / -6dB
|
|
Power Supply
|
External AC Adapter, 12~15V DC, 1A
|
|
Dimensions
|
420(W)×44(H)×240(D)mm / 16.5(W)x1.7(H)x8(D)"
|
|
Weight
|
Approx. 1.7kg / 3.7lbs
|
|
Notes
|
Refer to actual product in the event of product discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.
|
לקניית משדר ידני תואם - Mipro ACT30H לחץ כאן

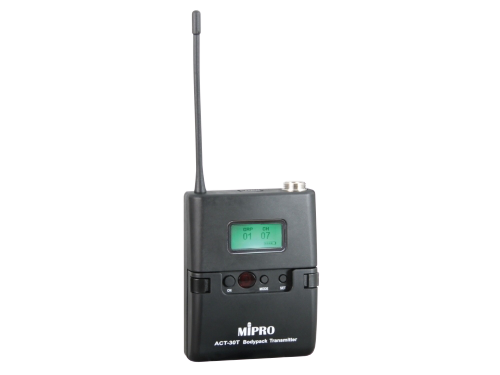

לקניית משדר חגורה תואם - Mipro ACT30T לחץ כאן
