מתאם 4 אנטנות Mipro AD-90S
מתאם 4 אנטנות מקצועי מבית Mipro
Introduced in 2006, the AD-90S is a UHF 4-channel power antenna splitter with a maximum output level of +26 dBm (0.4 W), allowing one transmitter to connect to 4 transmitting antennas.
The AD-90S primarily operates with 1 MI-909T in-ear monitoring transmitter or 1 MT-92A wireless interlinking transmitter to send signals through 4 channels with reliable signal transmission and larger signal coverage in multiple directions.
AD-90S is a UHF 4-channel power antenna splitter with a maximum output level of +26 dBm (0.4 W), assisting with one transmitter connecting to 4 transmitting antennas.
Primarily operates with 1 MI-909T in-ear monitoring transmitter or 1 MT-92A wireless interlinking transmitters to send signals through 4 channels with reliable signal transmission and larger signal coverage in multiple directions. Note that AD-90S is not designed for receivers.
Each channel of AD-90S can be connected to an AD-90A UHF wideband power amplifier to increase signal output power and transmission range when the antenna is installed in complex terrain or a large building with many partitions.
נתונים:
|
|
Frequency Range
|
UHF 470 ~ 960 MHz (country dependent)
|
|
|
System Gain
|
0 ~ 2 dB
|
|
|
Connector
|
TNC female (1 input, 4 output)
|
|
|
Max. RF Output Power
|
26 dBm
|
|
|
Power Supply
|
12 ~ 15 V DC
|
|
|
Dimensions
|
210 × 44 × 206 mm (W × H × D)
|
|
|
Net Weight
|
Approx. 1.1 kg
|
|
|
Note
|
Refer to actual product in the event of product description discrepancy.
|
|

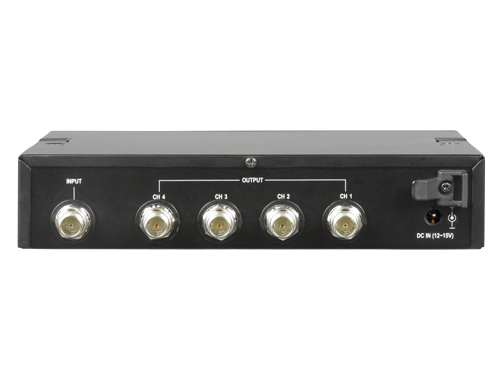

חלק אחורי:
