תיאור
גליל כבל איכותי לכלי נגינה עם סיכוך כפול ובידוד כפול בצבע שחור באורך 100 מטר מבית Klotz
-
ultra-low capacitance 65 pF/m (19 pF/ft)
-
double shielding
Be it on stage or in the studio – wherever maximum sound fidelity is the objective, our AC110 is the first choice. Demanding instrumentalists will notice the difference at once: this top cable offers an extremely low capacitance. Crispy and dominant high frequency transmission at long distances on large stages even when pickups with lots of coils (i. e. high impendance) are used. Also brilliant is the thick sturdy jacket, the double screening and a thick foam PE insulation of the robust conductor.

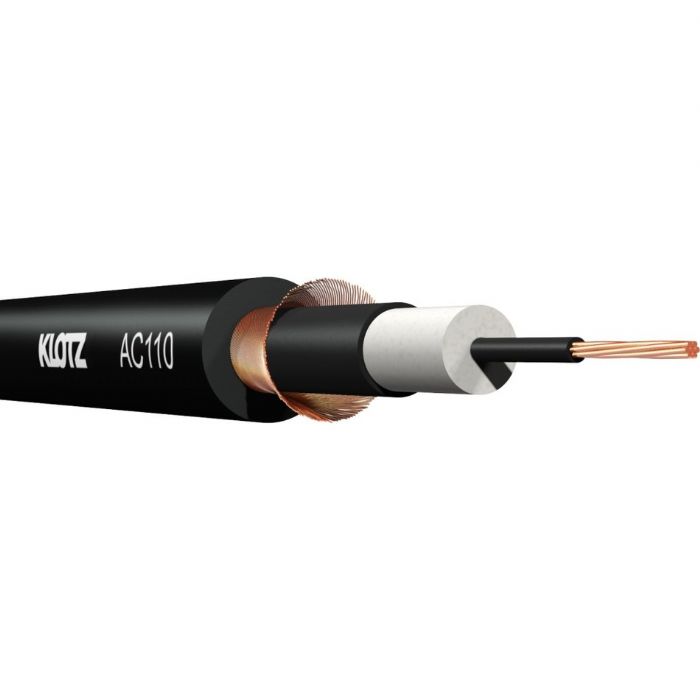

construction
|
cond. construction
|
stranded bare copper, 7 x 0.20 mm
|
|
cond. cross section
|
0.22 mm2
|
|
separating Layer
|
conductive plastic
|
|
insulation
|
Foam-Skin polyolefin
|
|
1. shield
|
conductive plastic layer
|
|
2. shield
|
bare copper spiral shield
|
|
outer jacket
|
PVC, matt
|
|
overall diameter
|
6.9 mm
|
mechanics
|
min. bending radius
|
40 mm
|
|
working temperature
|
-20°C / +70°C
|
electric
|
conductor resistance
|
< 85 Ω/km
|
|
capacitance
|
|
|
cond. / shield
|
65 pF/m
|
|
insulation resistance
|
> 1 GΩ x km
|
