CAT5e data cable, 4x 2x 0.52 mm (AWG 24/1) – solid conductors
-
data cable with stabilizing PE cross
-
SF/UTP (overall foil + braid shield)
-
robust PUR jacket
-

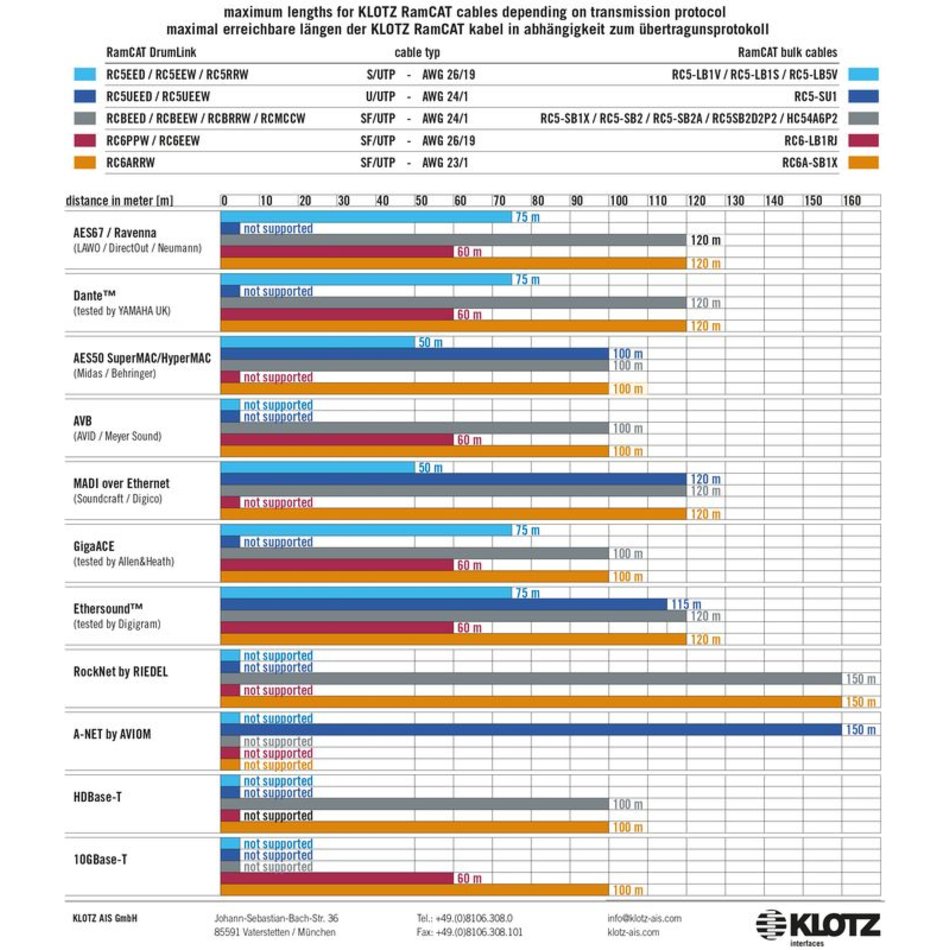

EtherSound™ tested by Digigram up to 120 m
-
MADI tested by Soundcraft/ Studer up to 120 m including 2 breakout panels and safety margin
-
GLD and iLive ACE/dSnake tested by Allen&Heath up to 120 m
-
Dante™ tested by YAMAHA UK up to 120 m, recommended up to 100 m – incl. extended error safety margin at 1 Gbit/s
Double shielded data cable RamCAT with solid conductors, PE-X element and PUR outer jacket. Thanks to AWG24 solid conductors it allows EtherSound™ up to 120 metres. The suitability for mobile use is reached by the special construction with a cross-shaped twisting element and durable PUR outer jacket. The conductor isolation of foam-Skin PE allows the assembly with the etherCON connectors.
conductor
|
solid bare copper wire, Ø 0.52 mm (AWG 24/1)
|
core insulation
|
Foam-Skin PE
|
core stranding
|
2 cores twisted to a pair
|
cable stranding
|
4 pairs twisted within a central PE cross
|
overall shield
|
AL/PET foil + tinned copper braid (80% coverage)
|
outer jacket
|
PUR
|
overall diameter
|
7.1 mm
|
conductor resistance
|
< 85 Ω/km
|
mutual capacitance
|
48 pF/m
|
characteristic impedance
|
100 Ω ± 15%
|
signal speed
|
0.76 c
|
propagation delay
|
4.9 ns/100m @ 100 MHz
|
delay skew
|
0.25 nsec/m
|
min. bending radius
|
|
installation
|
8x overall diameter
|
operation
|
15x overall diameter
|
tensile strength
|
100 N
|
working temperature
|
-40°C / +80°C
|
halogen-free
|
acc. to IEC 60754-1
|
