תיאור

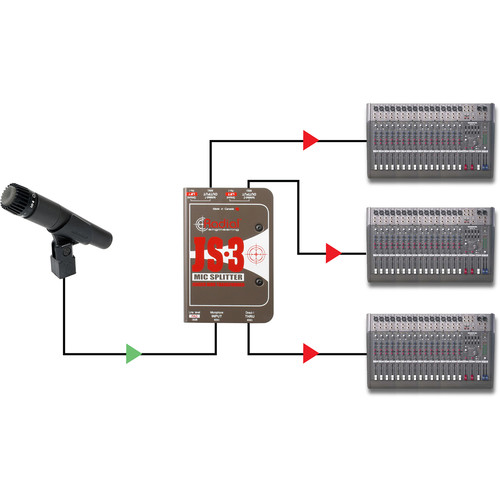

מפצל מיקרופונים Radial JS3 הוא פסיבי לחלוטין כך שהוא לא פוגע בסאונד. מסוגל לשלוח את אות המיקרופון שלך ל- 3 יעדים שונים. עם שנאי Jensen Audio
נתונים טכניים
- Audio Circuit Type: Passive mic/line splitter, transformer-based
- Number of Channels: 3-way splitter (one-in / three-out)
- Frequency Response: 20Hz – 20kHz (+0dB / -2dB)
- Dynamic Range: 140dB
- Maximum Input: +25dBu at 1kHz
- Total Harmonic Distortion: 0.0005 at 1kHz
- Phase Deviation: 0.7° at 100Hz, 2.8° at 20Hz
- Input Impedance: 2.4k?, unbalanced
- Output Impedance: 150?, balanced
- Construction: 14-gauge steel chassis and outer shell
- Finish: Durable powder coat
- Power: Passive, no power required
- Conditions: For use in dry locations only between 5°C and 40°C
- Dimensions: 84mm x 127mm x 48mm / 3.3” x 5” x 2”
- Weight: 0.7kg / 1.55lbs
Connectivity & Controls
- Transformer: JT-MB-DPC, 1:1:1 ratio
- Shield: Dual Faraday, MuMETAL can
- Input Pad: -30dB (allows line-level sources)
- Ground Lift: Disconnects XLR pin-1 at direct-2 and isolated output
- XLR Configuration: AES standard (pin-2 hot)
- Connectors:
- XLR-F in
- XLR-M direct; direct-2; isolated outputs
