תיאור
פדל לשירה TC Helicon VoiceLive Play מאפשר לך ליצור אפקטים עוצרי נשימה בקלות. כולל מאות של פריסטים מוכנים וטכנולוגיית Auto Key עבור הרמוניות מושלמות
נתונים טכניים
Design
| Size | Height: 1.8 inches (45 mm) Width: 7.9 inches (200 mm) Depth: 6.1 inches (156 mm) |
| Weight | Weight: 2.1 lb. (0.95 kg) |
| Construction | Dual die-cast clamshell design Acrylic Lens Punch-cut Metal connection panel Rubberized footings Backlit Graphic LCD Display |
Connections

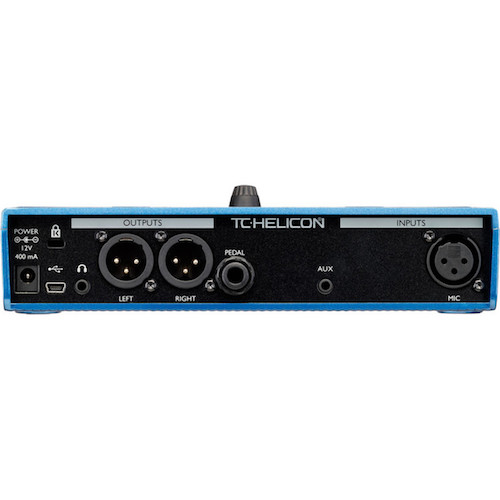

| Analog Inputs | Connectors, balanced: Mic.: XLR, Aux: 1/8? stereo mini jack Impedance: Balanced/Unbalanced: Mic.: 2.14/1.07 kOhm Mic Input Level @ 0 dBFS: -42dBu to +13dBu EIN @ Max Mic Gain Rg = 150 Ohm : -127 dBu Mic SNR: > 104 dB Phantom Power: +48V (on/off via Setup menu) Aux Input Level @ 0dBu: +2dBu A to D Conversion: 24 bit, 128 x oversampling bitstream, 110dB SNR A-weighted Output Impedance Balanced/ Unbalanced: 80/40 Ohm XLR Output 0dBFS: +2 dBu Dynamic Range: > 109 dB, 20 Hz to 20 kHz Headphone Out: 1/8? Mini stereo jack |
| Analog Outputs | D to A Conversion: 24 bit, 128 x oversampling bitstream, 115dB SNR A-weighted Connectors, balanced: XLR Output Impedance Balanced/ Unbalanced: 80/40 Ohm XLR Output 0dBFS: +2 dBu Dynamic Range: > 109 dB, 20 Hz to 20 kHz Frequency Response: +0.30/-0 dB, 20 Hz to 20 kHz Headphone Out: 1/8? Mini stereo jack |
| Control | USB: USB-B (Firmware Updates, Preset Management, audio I/O) Pedal: 1/4? TRS phone jack |
Safety And Regulations
| Power | External Power Supply. Mains Voltage Input: 100 to 240 VAC, 50 to 60 Hz (auto-select) 12V DC 0.4A max output Power Consumption: < 14 W |
| Safety | EMC – Complies with: EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B Safety – certified to: IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA |
| Environment | Operating Temperature: 32° F to 122° F (0° C to 50° C) Storage Temperature: -22° F to 167° F (-30° C to 70° C) Humidity: Max. 90 % non-condensing |
| What’s in the box? | Region specific power supply USB cable User guide TC Helicon Sticker |
