Description
סינטיסייזר חצי מודולרי פרה-פוני אנלוגי כולל 2VCO,2VCA,2VCF ו-4 Envelopes מבית Behringer גרמניה
מאפיינים עיקריים:
- Analog semi-modular desktop synthesizer for flexible and unique sound creation
- Dual VCOs with sub-oscillators for massive bass and lead sounds
- Five continuously variable oscillator waveforms
- Oscillator sync and pulse width modulation to add movement to VCOs
- Paraphonic mode with individual control over each oscillator for multi-timbral sounds
- Semi-modular design allows for instant playing without patching and modular-like CV experimentation
- Pure analog design of VCOs, VCFs, and VCAs reminiscent of classic modular synths
- Two self-oscillating multi-mode filters with parallel or series routing options]
- Wavefolder effect for adding harmonics to all waveforms or creating unique LFO shapes
- Two ASR envelopes with reverse, inverse, loop and bounce to add movement to VCA and wavefolder
- Two ADSR generators for modulating both filters
- Two LFOs with five waveforms, MIDI clock, key sync, adjustable phase and depth control
- Noise generator for additional sound and waveform possibilities
- External audio input with level control, soft clipping circuit, and processing external sounds with filters
- Utilities like attenuverters, multiples, signal/CV mixer and summer for wide patching potential
- 64 patch points for flexible internal patching and connectivity with other modular and semi-modular synths
- 68 controls for direct real-time parameter control
- Can be transferred to standard Eurorack case for integration into modular systems
- MIDI implementation allows for MIDI channel switching and voice priority selection
מפרט טכני:
Synthesizer Architecture
- Number Of Voices: 1 / 2 (Monophonic / Paraphonic)
- Type: Analog
- Oscillators: 2 VCO
- LFO: 2 LFO
- VCF: 2 LPF/HPF/Band Pass Switchable 12 dB/Octave
- Envelopes: 2 ADSR / 2 ASR
- Wavefolder: 1 Wavefold Circuit

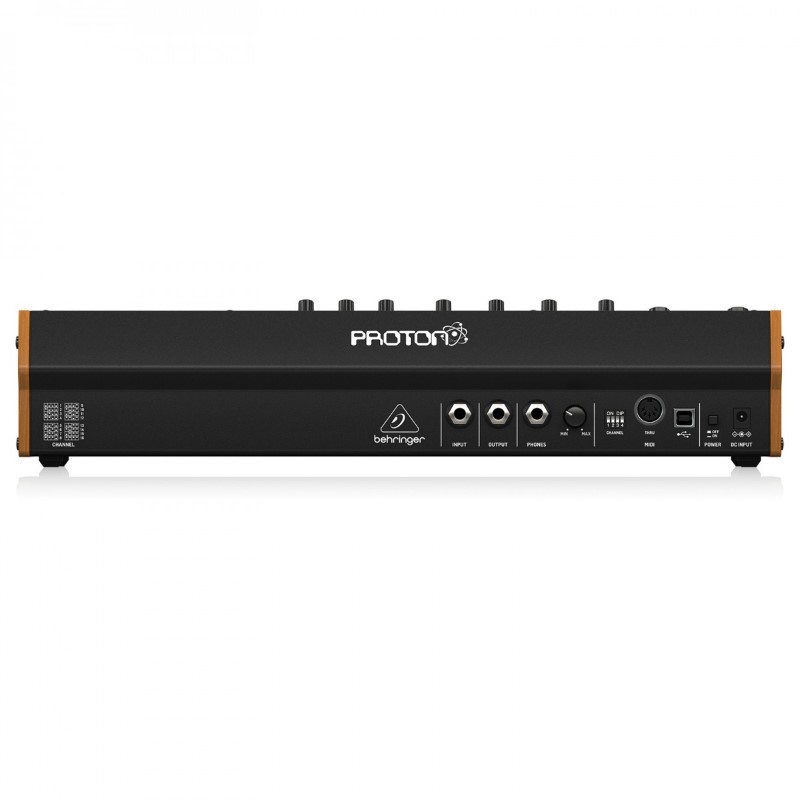

>Connectivity
- Power Switch: Rear Panel
- MIDI In: 5-pin DIN (Top Panel)
- MIDI Thru: 5-pin DIN (Rear Panel)
- USB: USB 2.0 Type B Socket
- External Audio In: 6.35 mm (1/4″) TR Jack
- Audio Output: 6.35 mm (1/4″) TR Jack
- Headphone Out: 6.35 mm (1/4″) TRS Jack
>USB
- Type: Class Compliant USB 2.0 Type B
- Supported Operating Systems: Windows 7 Or Higher, Mac OS 10.10 Or Higher
Oscillator Section
- Controls: Tune x 2, Shape x 2, Pulse Width x 2, Sub Osc x 2, Osc Mix
- Buttons: Range x 2, Paraphonic On/Off, Sync On/Off
Filter Section
- Controls: Frequency x 2, Resonance x 2, Modulation Depth x 2, Envelope Depth x 2, Noise
- Buttons: Filter Mode x 2, Filter Link On/Off, Soft On/Off, Key Track On/Off
Wavefolder Section
- Controls: Symmetry, Folds
- Buttons: Mode
Envelope Section
ADSR:
- Controls: Attack x 2, Decay x 2, Sustain x 2, Release x 2
- Buttons: Fast/Slow, Retrigger
ASR:
- Controls: Attack x 2, Release x 2
- Buttons: Loop, Bounce, Sustain, Invert, Reverse, Retrigger
LFO Section
- Controls: Shape x 2, Rate x 2, Depth x 2
Buttons: 1 Shot, Key Sync, Retrigger, Shift
VCA Section
- Controls: Bias x 2, Volume, External Audio
Utilities Section
- Controls: CV Mix, Portamento Time, Attenuator 1, Attenuator 2
Input Patchbay
3.5 mm TS Jacks:
- Osc 1 CV
- Osc 2 CV
- Osc 1&2 CV
- PW 1
- PW 2
- Shape 1
- Shape 2
- WF In
- WF Sym
- WF Folds
- VCF 1 In
- VCF 1 Freq
- VCF 1 Resonance
- VCF 2 In
- VCF 2 Freq
- VCF 2 Resonance
- VCA 1 In
- VCA 1 CV
- External Input
- Out Input
- LFO 1 Trig
- LFO 2 Trig
- LFO 1 Rate
- LFO 2 Rate
- LFO 1 Shape
- LFO 2 Shape
- ADSR 1 Trig
- ADSR 2 Trig
- AR 1 Trig
- AR 2 Trig
- VCA 2 In
- VCA 2 CV
- Att 1 In
- Att 2 In
- Mult In
- CV Mix 1
- CV Mix 2
- CV Mix CV
- Sum A
- Sum B
Output Patchbay
3.5 mm TS Jacks:
- Osc 1
- Osc 2
- Osc Mix
- WF
- VCF 1
- VCF 2
- VCF Mix
- VCA 1
- VCA 2
- Mult 1
- Mult 2
- Att 1
- CV Mix
- Sum
- Att 2
- ADSR 1
- ADSR 2
- AR 1
- AR 2
- LFO 1 Uni
- LFO 1 Bi
- LFO 2 Uni
- LFO 2 Bi
- Assign
מידות ומשקל
- Dimensions: 531 x 186 x 127 mm (20.9 x 7.3 x 5″)
- Weight: 2.56 kg
