תיאור
סינטיסייזר פוליפוני 16 קולות אנאלוגי, 8 מצבי וינטג’, VCF כפול ומקלדת פולי אפטר טאץ.
מפרט טכני:
- Reproduction of the classic OB-Xa including the original factory programmes
- 16-Voice multi-timbral
- 61 Semi-weighted velocity-sensitive keys with poly aftertouch
- Split and Layer function
- 8 Vintage modes
- Dual VCF
- 2 VCOs per voice and oscillator sync mode
- Both VCOs generate sawtooth, triangle or square waveforms with variable pulse width
- 2 Dedicated LFOs with 7 waveforms to modulate pulse width, oscillator pitch and filter cutoff frequency
- 2 ADSR generators per voice to control VCF and VCA
- Selectable analogue 12/24 dB low-pass filter with 2 slopes per voice and adjustable resonance
- Flexible 8-channel modulation matrix
- Dual-layer arpeggiator and sequencer with real-time sequence transposition
- 512 User programs can be stored with “Compare and Match” function for quick comparison of all analogue control elements with stored program values
- MPE
- LC display
- 26 Rotary controls for direct real-time access to all important parameters

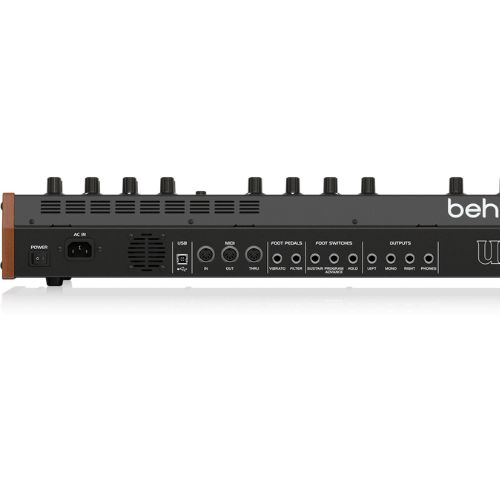

- Foot pedal inputs for vibrato and filter: 2x 6.3 mm jacks
- Footswitch inputs for sustain, programme advance and hold: 3x 6.3 mm jacks
- Line outputs (L, R, mono): 3x 6.3 mm jacks
- Stereo headphone output: 6.3 mm jack
- MIDI In/Out/Thru
- USB
- Dimensions: 1045 x 109 x 350 mm
- Weight: 11.7 kg
