תיאור

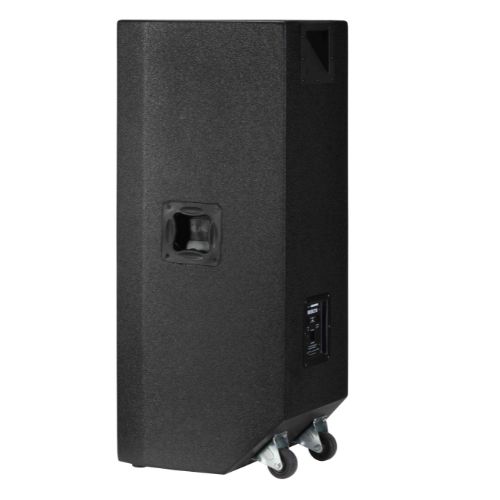

רמקול פאסיבי דאבל 15 אינץ’ מסדרת Delta מבית וורפידל אנגליה. רמקול להתקנות קבע ולשימושי הגברה מקצועיים.
מפרט טכני:
| Model Name | DELTA-X215 |
| System Type | Passive |
| Configuration | Quassi Three-way |
| Frequency Response (+/-3dB) | 45-20KHZ |
| Frequency Range (- 10 dB) | 45-20KHZ |
| Sensitivity (2.83v/1m) | 101dB |
| Calculated Maximum SPL @1m | 137dB |
| System Rated Impedance | 4Ω |
| Low Frequency Transducer | |
| Size | 2 x 404mm / 15″ |
| Voice-Coil Size | 77.1mm / 3″ |
| Rated Impedance | 2×8Ω |
| LF Power (re:AES2-2012) | 2x500W |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver |
| Voice-Coil Size | 50.8mm / 2″ |
| Exit Size | 35.6mm / 1.4″ |
| Diaphragm Material | Titanium |
| Rated Impedance | 8Ω |
| HF Power (re:AES2-2012) | 50W |
| Nominal Coverage (H x V) | 90⁰ x 45⁰ |
| Power | |
| System Continuous Power | 1000W |
| System Programme Power | 2000W |
| System Peak Power | 4000W |
| Crossover frequency | 1.8Hz |
| Input Connector | 2 x NL4 (speakON Compatible) |
| Hardware | |
| Handles | 2 on Sides / 1 on Back |
| Enclosure | |
| Enclosure Material | 15mm Plywood |
| Finish | black paint |
| Grille Material & Finish | 1.5 mm Steel Black |
| Dimensions – Unpacked | |
| Height | 1135mm / 44.7″ |
| Width Front | 488mm / 19.2″ |
| Width Rear | 299.6mm / 11.8″ |
| Depth | 450mm / 17.7″ |
| Dimensions – Packed | |
| Height | 1218mm / 48.0″ |
| Width Front | 558mm / 22.0″ |
| Width Rear | 558mm / 22.0″ |
| Depth | 522mm / 20.6″ |
| Weight | 59.0kg / 130.0lbs |
| Net Weight (kg / lbs) | 52.9kg / 116.6lbs |
| Gross Weight (kg / lbs) | 59.0kg / 130lbs |
